汽車電子系統
知識與希望盡在 K&H 教學設備與測試儀器

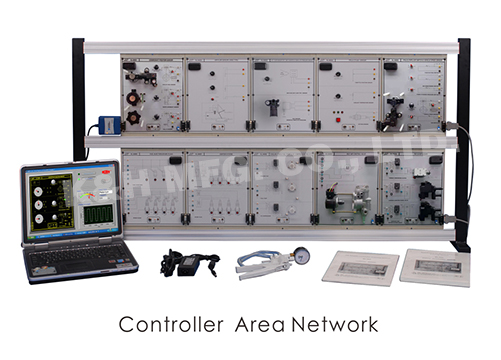

智慧型 CAN BUS 訓練整合系統共有一台 CAN BUS 網路人機介面平台和 10 片 CAN BUS 實驗模組。系統除提供 CAN BUS 信號輸出/輸入操作、CAN 通訊的資料格式呈現和各種量測電壓波形展示外,依照 OBD-Ⅱ 參數編號汽車之運轉、空氣流量、溫度變化、燃料系統、點火系統和怠速控制閥的各種感測器測量特性和致動器操作大小等通訊協定,並明確顯示相關異動對照位元組資料的改變。

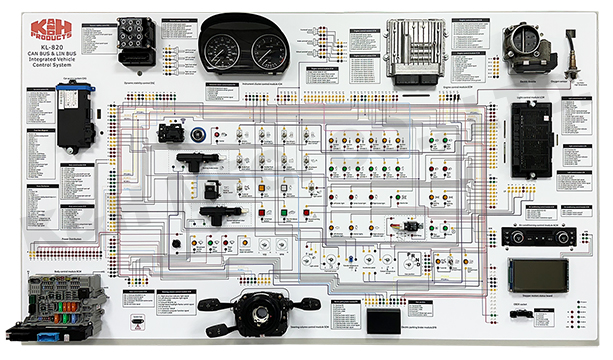

此設備是基於 BMW ⾞系所設計的實⾞網路系統,包含 CAN (PT-CAN/FCAN/KCAN) 和 LIN。並將 BCM, CAS ECM, LCM, ICM, ACM, SCM 等控制器所組成的多種控制模組完整地轉移到設備上。透過單晶片技術,將實際⾞輛的感測器訊號輸出到設備中,減去了複雜的機械結構和實體感測器,讓使⽤者可以更簡易的了解實⾞的網路系統。此設備可做為 CAN/LIN 的學習,並讓使⽤者了解⾞輛中的動⼒、⾞⾝控制與底盤系統。

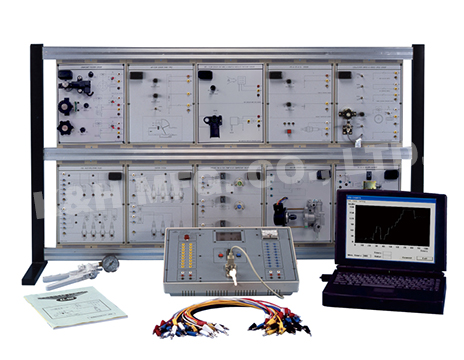

Interactive Computerized Automotive System. The whole system has been modularized to provide electronic and automotive courses with step-by-step experiments on educational technology training. All theoretical, experimental and practical learning procedures are supported by personal computer assisted supervision and dedicated software. The KL-800 can simulate the operation of fuel injection system, ignition system, and the control of exhaust gas, etc. Experiments include the characteristics, and operation of various sensors and actuators, monitored by microprocessor on the main unit.
